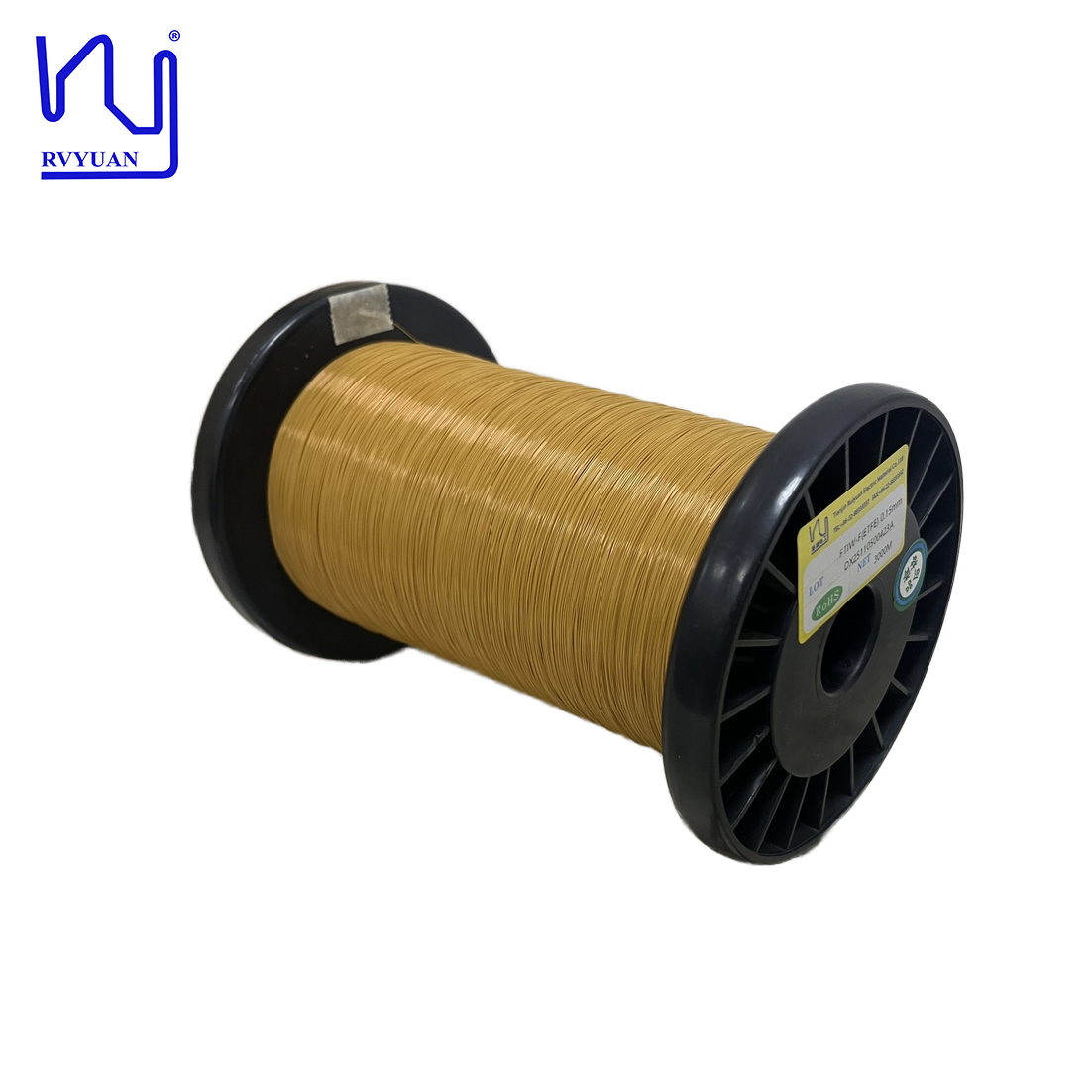

TIW-F 0.15mm Tripe Insulated Wire Copper Conductor For Transformer

Grundlegende Informationen

Herkunftsort:	China
Markenname:	RVYUAN
Zertifizierung:	UL/ISO9001/ISO14001/RoHS/Reach
Modellnummer:	0,15 mm

Min Bestellmenge:	3000 Meter
Preis:	negotiable
Verpackung Informationen:	Karton
Lieferzeit:	7 Tage
Zahlungsbedingungen:	T/t/paypal
Versorgungsmaterial-Fähigkeit:	1ton/month

Bestpreis Kontakt

Detailinformationen

Produktname:	TIW-F 0,15 mm isolierter Kutteldraht-Kupferleiter für Transformator	Wärmebewertung:	155
Einzeldrahtdurchmesser:	0,15 mm	Leitermaterial:	Kupfer
Insualität:	ETFE
Hervorheben:	0.15mm triple insulated wire , copper conductor transformer wire , TIW-F triple insulated wire

Produkt-Beschreibung

TIW-F 0.15mm Tripe Insulated Wire Copper Conductor For Transformer

TIW-F 0.15mm Tripe Insulated Wire Copper Conductor For Transformer features excellent chemical and heat resistance. ETFE exhibits exceptional resistance to a wide range of chemicals, solvents, oils, and radiation, making it ideal for transformer manufacturing.

Excellent chemical and heat resistance properties
Ideal for transformer manufacturing applications
Small batch customization available (minimum 3,000 meters)
ETFE insulated litz wire options available
Custom size and strand configurations

Product Specifications

Item	Standard	Test Result
Outer diameter of conductor (mm)	0.169mm(Max.)	0.163 \| 0.165 \| 0.163
Enamel coating thickness	0.008mm(min.)	0.013 \| 0.016 \| 0.014
Conductor	0.15±0.003mm	0.15 \| 0.149 \| 0.149
Elongation	15%(min.)	30.6 \| 30.6 \| 30.6
Overall dimension	0.350-0.365mm(max.)	0.359 \| 0.362 \| 0.359
Insulation thickness	0.1±0.01mm(min)	0.099 \| 0.101 \| 0.094
Pinhole	0 M/1 fault(max)	0 \| 0 \| 0
Resistance	1037Ω,km(max)	1007.3 \| 1001.6 \| 1004.8
Breakdown voltage	6KV(min)	16.6 \| 17 \| 17.6
Solderability(±10℃)	450℃ 3s smooth	ok \| ok \| ok

Customization & Support

We support small batch customization with a minimum order quantity of 1,000 meters. Our professional team provides technical support and custom specifications are available upon request.
