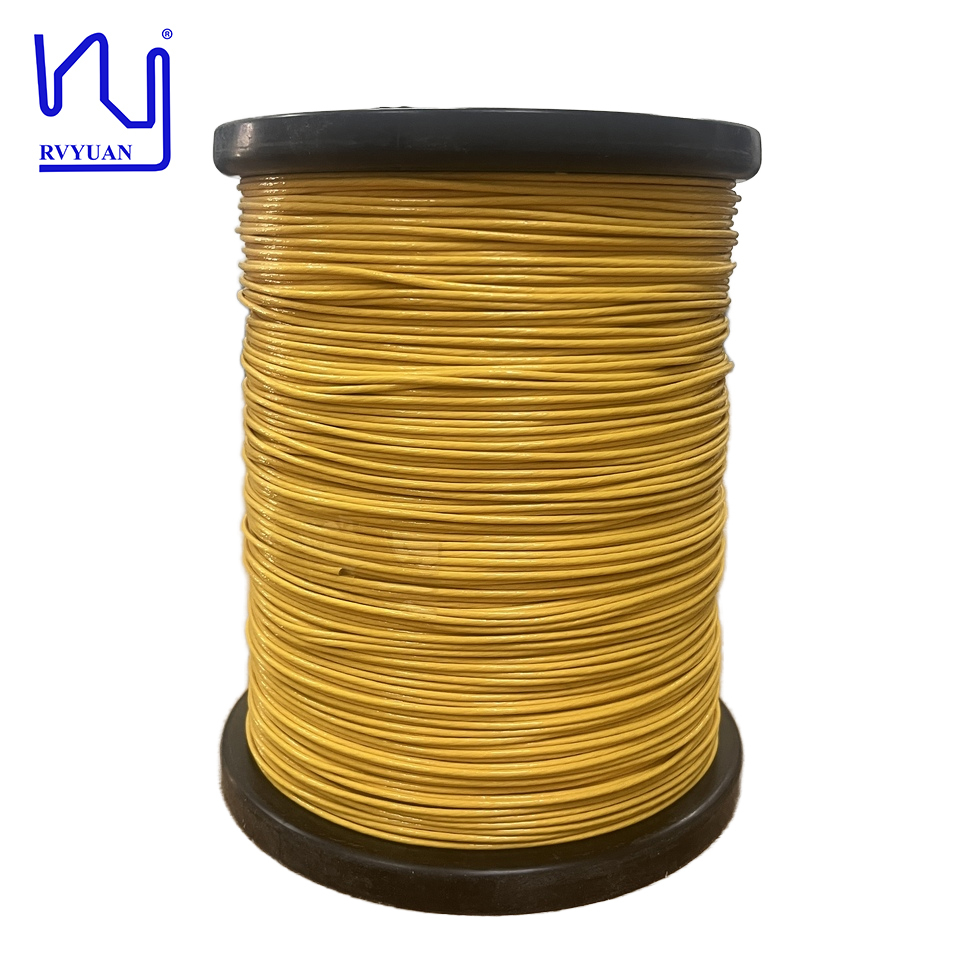

Extruded ETFE Litz Wire 0.1mm*250 Class 155 Copper Conductor

Grundlegende Informationen

Herkunftsort:	CHINA
Markenname:	RVYUAN
Zertifizierung:	UL/ISO9001/ISO14001/RoHS/Reach
Modellnummer:	0,1 mm

Min Bestellmenge:	1000 Meter
Preis:	negotiable
Verpackung Informationen:	Karton
Lieferzeit:	7 Tage
Zahlungsbedingungen:	T/t/paypal
Versorgungsmaterial-Fähigkeit:	1ton/month

Bestpreis Kontakt

Detailinformationen

Produktname:	Extruded ETFE Litz Draht 0,1 mm*250 Klasse 155 Kupferleiter	Wärmebewertung:	155
Einzeldrahtdurchmesser:	0,1 mm	Leitermaterial:	Kupfer
Anzahl der Stränge:	250	Insualität:	ETFE
Hervorheben:	ETFE Litz Wire 0.1mm , Class 155 Copper Conductor Wire , Triple Insulated ETFE Wire

Produkt-Beschreibung

Extruded ETFE Litz Wire 0.1mm*250 Class 155 Copper Conductor

The superior bending properties compared to other fluoropolymers. This property enables tighter bends without compromising the integrity of the wire, making it ideal for high-frequency interconnects. ETFE also offers excellent water and chemical resistance, further enhancing the wire's durability and longevity in harsh environments.

Technical Specifications

Characteristics	Technical Requests	Sample 1	Sample 2	Sample 3	Conclusion
Appearance	Smooth & Clean	OK	OK	OK	OK
Diameter of single wire	0.10±0.003mm	0.100	0.100	0.099	OK
Thickness of Enamel	≥ 0.004mm	0.006	0.007	0.008	OK
OD of single wire	0.105-0.109mm	0.106	0.107	0.107	OK
Twist Pitch	S28±2	OK	OK	OK	OK
Insulation Thickness	Min.0.1mm	0.12	0.12	0.12	OK
OD of Litz Wire	Max. 2.2mm	2.16	2.16	2.12	OK
DC Resistance	Max.9.81 Ω/km	9.1	9.06	9.15	OK
Elongation	≥ 13 %	23.1	21.9	22.4	OK
Breakdown Voltage	≥ 5K V	8.72	9.12	8.76	OK
Pin Hole	0 hole/5m	0	0	0	OK

We have a professional team to provide technical support. Custom specifications available upon request.
