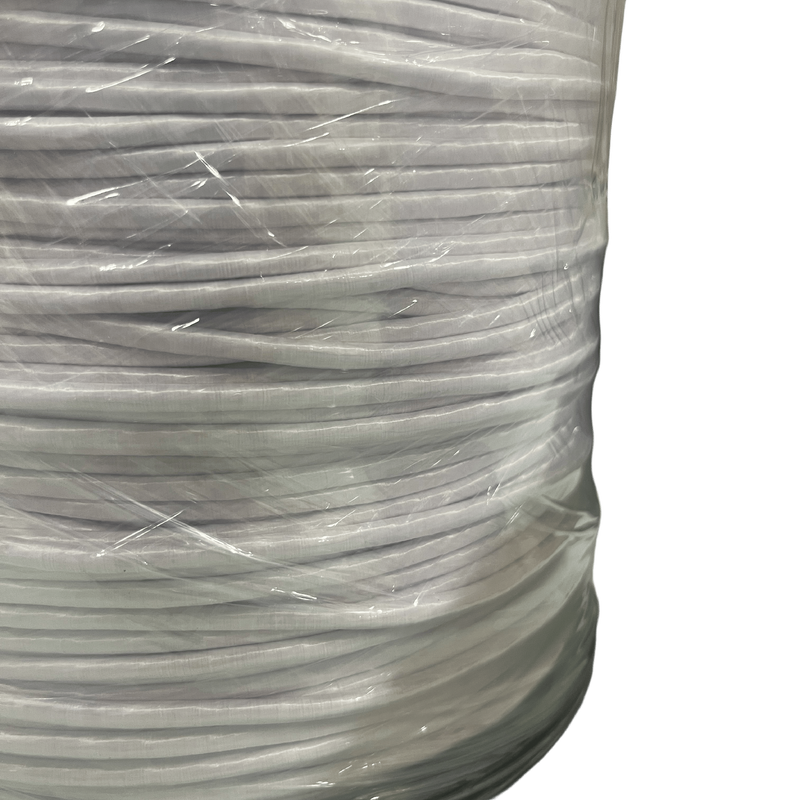

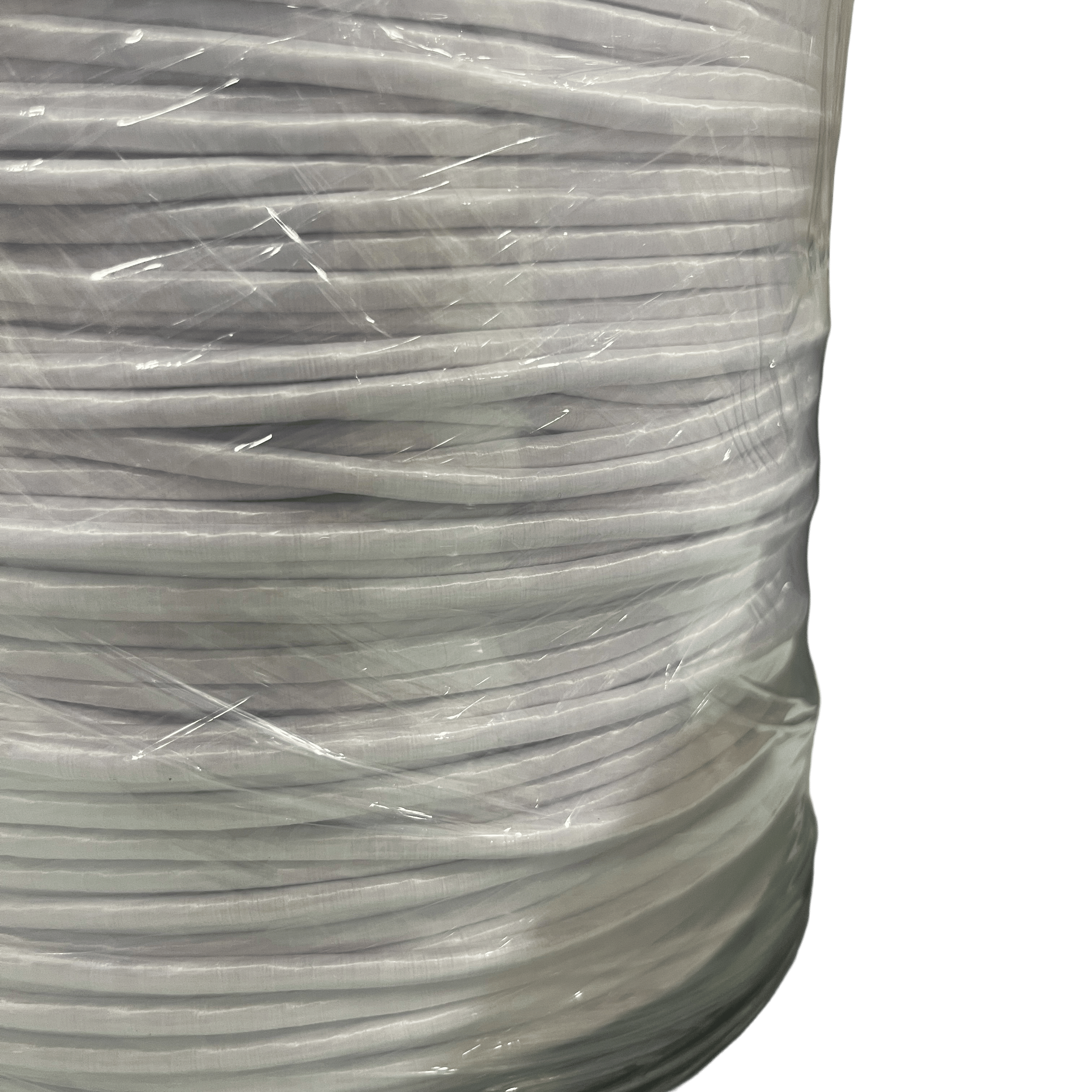

2USTC 38AWG Copper Core Silk Coated Litz Wire 180 Strands for Transformers

2USTC 38AWG Copper Core Silk Coated Litz Wire 180 Strands for Transformers
2USTC 38AWG Copper Core Silk Coated Litz Wire 180 Strands for Transformers
2USTC 38AWG Copper Core Silk Coated Litz Wire 180 Strands for Transformers
Grundlegende Informationen
Herkunftsort: China
Markenname: RVYUAN
Zertifizierung: ISO9001/ISO14001 /UL/SGS
Modellnummer: USTC
Min Bestellmenge: 20kg
Preis: Verhandelbar
Verpackung Informationen: Spule mit Karton
Lieferzeit: 15 Werktage
Zahlungsbedingungen: T/T/Paypal
Versorgungsmaterial-Fähigkeit: Befriedigen Sie Ihre Nachfrage
Bestpreis Kontakt
Detailinformationen
Durchmesser: 0,1 mm Temperatur: 155
Zertifizierung: IEC/NEMA/JIS/RoHS/ISO Leiter: Kupfer
Stränge: 900 Durchbruchspannung: Min. 1100
Bezugsmaterial: Nylon Schlüsselwort: 2USTC 38AWG Kupferkern, seidenbeschichteter Litzendraht, 180 Litzen für Transformatoren
Hervorheben:

38AWG copper core Litz wire

,

silk coated Litz wire for transformers

,

180 strands USTC Litz wire

Produkt-Beschreibung

2USTC 38AWG Copper Core Silk Coated Litz Wire 180 Strands for Transformers
High-quality 38AWG copper core litz wire with silk coating, featuring 180 strands specifically designed for transformer and coil applications.
Customization Options
  • Strand count: 2 to 12,500 strands available
  • Individual wire diameter: 0.03mm - 0.5mm
  • Thermal class: Up to 180°C
  • Outer covering materials: Nylon, polyester, or natural silk
  • Upgraded insulation for higher temperature or chemical resistance
Contact us for technical datasheets or custom samples tailored to your transformer or coil design requirements.
Technical Specifications
Item No. Diameter of Single Wire (mm) Conductor Diameter (mm) OD (mm) Resistance (Ω/m) Breakdown Voltage (V) Pitch
Tech Requirement 0.107-0.125 0.10±0.003 Max. 4.54 ≤0.002646 ≥1100 65±10
Sample 1 0.110-0.113 0.098-0.10 4.05-4.51 0.002393 2800 √
2USTC 38AWG Copper Core Silk Coated Litz Wire 180 Strands for Transformers 0
All specifications are subject to standard manufacturing tolerances. Contact us for detailed technical data sheets and custom requirements.

Größe und Tag:

Selbst,

der dünnen angeschwemmten Draht verpfändet,

emaillierter dünner angeschwemmter Draht
