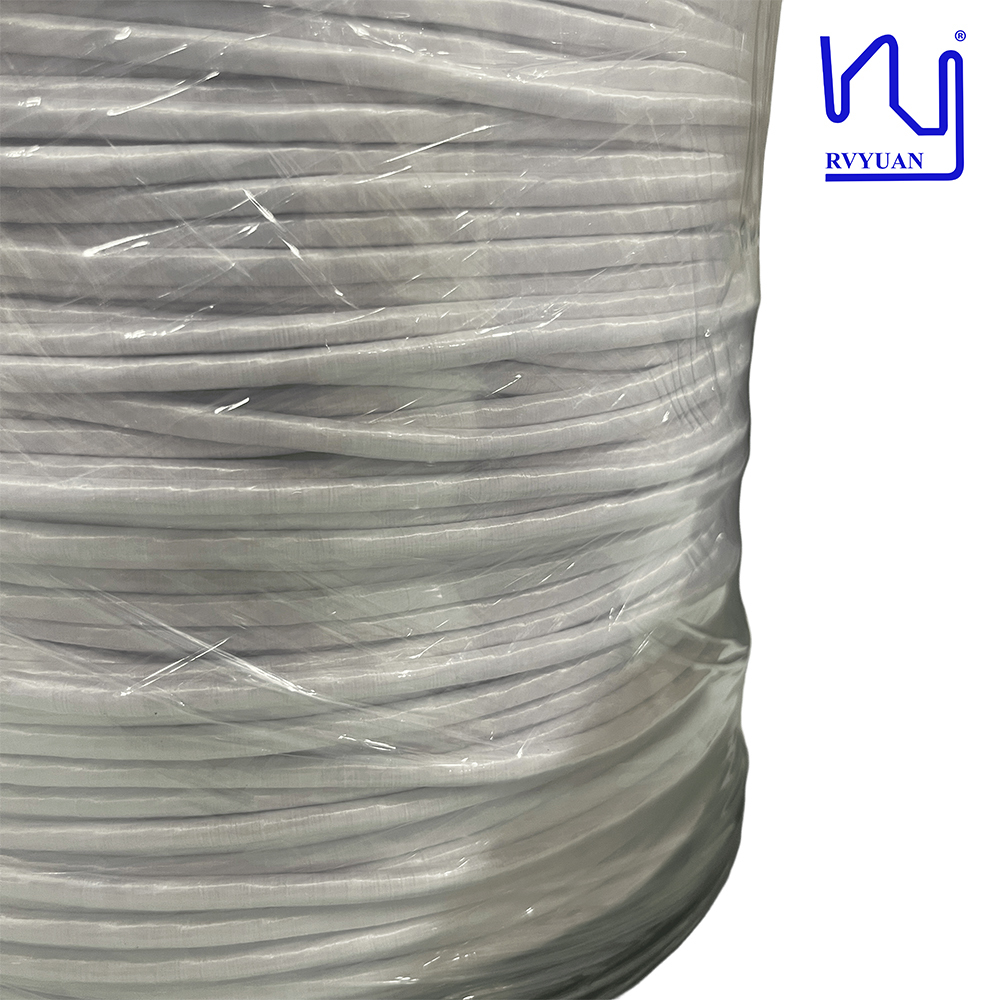

Nylon Serving Litz Wire 0.1mm*900 Silk Covered Wires For Transformer

Grundlegende Informationen

Herkunftsort:	China
Markenname:	RVYUAN
Zertifizierung:	ISO9001/ISO14001 /UL/SGS
Modellnummer:	USTC

Min Bestellmenge:	20kg
Preis:	Verhandelbar
Verpackung Informationen:	Spule mit Karton
Lieferzeit:	15 Werktage
Zahlungsbedingungen:	T/T/Paypal
Versorgungsmaterial-Fähigkeit:	Befriedigen Sie Ihre Nachfrage

Bestpreis Kontakt

Detailinformationen

Durchmesser:	0,1 mm	Temperatur:	155
Zertifizierung:	IEC/NEMA/JIS/RoHS/ISO	Leiter:	Kupfer
Stränge:	900	Durchbruchspannung:	Min. 1100
Bezugsmaterial:	Nylon	Schlüsselwort:	Nylon-Servierlitze 0,1 mm * 900 seidenummantelte Drähte für Transformatoren
Hervorheben:	Nylon serving litz wire 0.1mm , Silk covered wires for transformer , 900 strand litz wire nylon

Produkt-Beschreibung

Nylon Serving Litz Wire 0.1mm*900 Silk Covered Wires For Transformer

This specialized nylon serving Litz wire features 900 strands of 0.1mm silk-covered wires, engineered specifically for high-performance transformer applications.

Key Advantages

Multi-stranded construction significantly reduces AC resistance and eddy current losses
Ideal for high-efficiency transformers, inductors, and chokes operating at high frequencies
Nylon covering enhances surface lubricity for tighter, more uniform windings
Prevents damage to adjacent turns during winding processes
Superior flexibility and lower bending radius compared to solid wires
Easier installation in confined spaces and complex winding patterns

Technical Specifications

Item No.	Diameter of Single Wire (mm)	Conductor Diameter (mm)	OD (mm)	Resistance (Ω/m)	Breakdown Voltage (V)	Pitch
Tech Requirement	0.107-0.125	0.10±0.003	Max. 4.54	≤0.002646	≥1100	65±10
Sample 1	0.110-0.113	0.098-0.10	4.05-4.51	0.002393	2800	√

All specifications are subject to standard manufacturing tolerances. Contact us for detailed technical data sheets and custom requirements.
