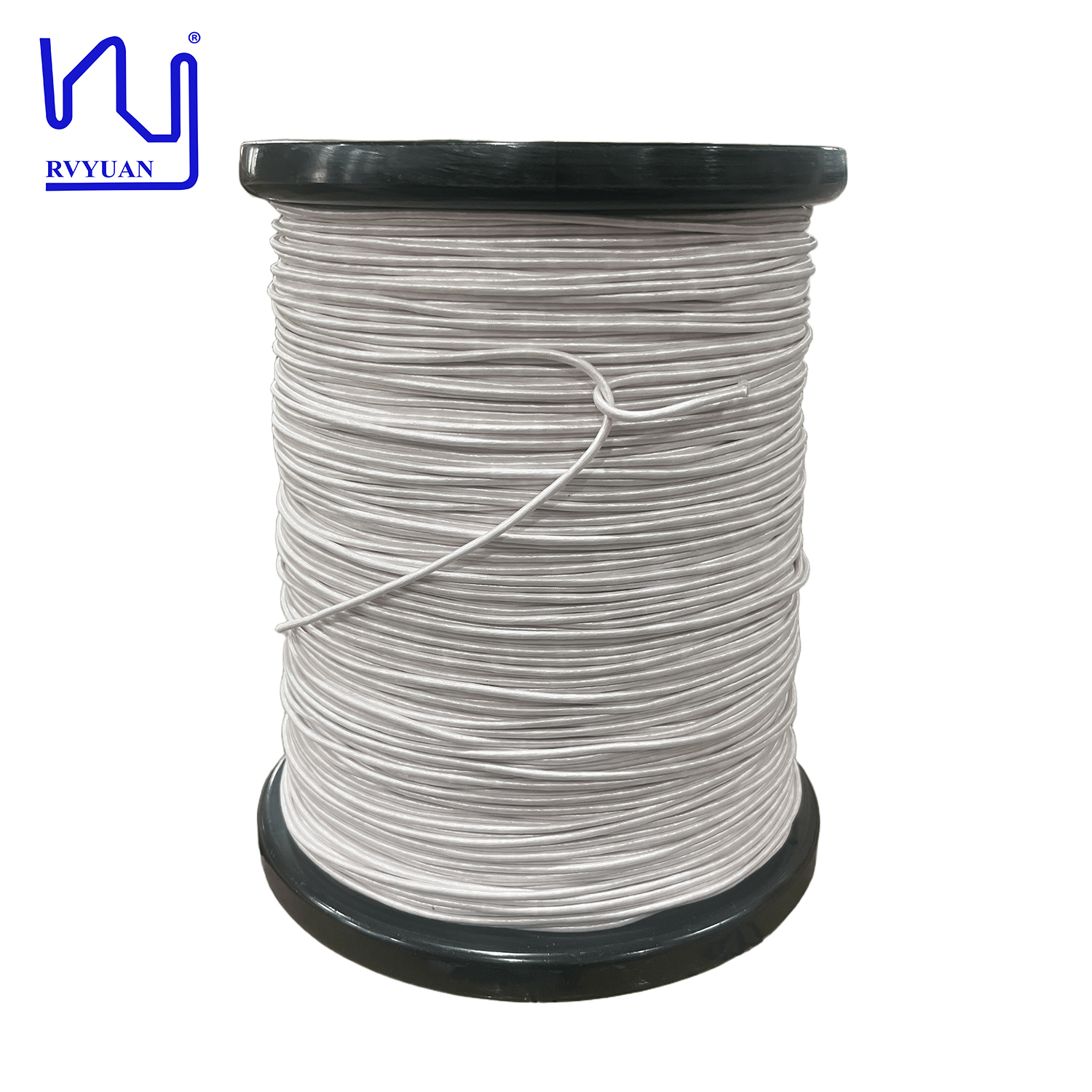

2USTC High Frequency Silk Coated Litz Wire 0.1x300Multi Strand Wires For Transformer

Grundlegende Informationen

Herkunftsort:	China
Markenname:	RVYUAN
Zertifizierung:	ISO9001/ISO14001 /UL/SGS
Modellnummer:	USTC

Min Bestellmenge:	50kg
Preis:	Verhandelbar
Verpackung Informationen:	Spule mit Karton
Lieferzeit:	15 Werktage
Zahlungsbedingungen:	T/T/Paypal
Versorgungsmaterial-Fähigkeit:	Befriedigen Sie Ihre Nachfrage

Bestpreis Kontakt

Detailinformationen

Durchmesser:	0,1 mm	Temperatur:	155
Zertifizierung:	IEC/NEMA/JIS/RoHS/ISO	Leiter:	Kupfer
Stränge:	300	Durchbruchspannung:	Min. 1100
Bezugsmaterial:	Nylon	Schlüsselwort:	2USTC Hochfrequenz-Litze mit Seidenbeschichtung, 0,1 x 300, mehradrige Drähte für Transformatoren
Hervorheben:	high frequency litz wire , silk coated litz wire , multi strand transformer wire

Produkt-Beschreibung

2USTC High Frequency Silk Coated Litz Wire 0.1x300 Multi Strand Wires

This nylon serving litz wire is engineered for transformer windings in demanding applications including switch-mode power supplies, high-frequency inverters, and resonant converters. The litz construction significantly reduces AC resistance, enhancing energy efficiency while minimizing heat generation.

Key Applications & Benefits

Ideal for transformer windings in high-frequency power conversion circuits
Reduces AC resistance for improved energy efficiency
Minimizes heat generation in demanding applications
Nylon serving provides abrasion resistance and electrical isolation
Compact diameter enables higher packing density in transformer cores
Excellent voltage rating ensures reliable performance

Technical Specifications

Item	Tech Requirement	Sample 1	Sample 2
Diameter of Single Wire (mm)	0.107-0.125	0.110	0.113
Conductor Diameter (mm)	0.10±0.003	0.098	0.100
OD (mm)	Max. 2.65	2.28	2.38
Resistance Ω/m (20℃)	≤0.007937	0.007391	0.007400
Breakdown Voltage (V)	≥1100	2500	2800
Pitch	47±3	√	√
Pinhole Test	69 faults/6m	18	14
Solderability	Temp. 390±5℃ 8s Smooth surface, no pinholes, no residue	√	√

All specifications are subject to standard manufacturing tolerances. Contact us for detailed technical data sheets and custom requirements.
