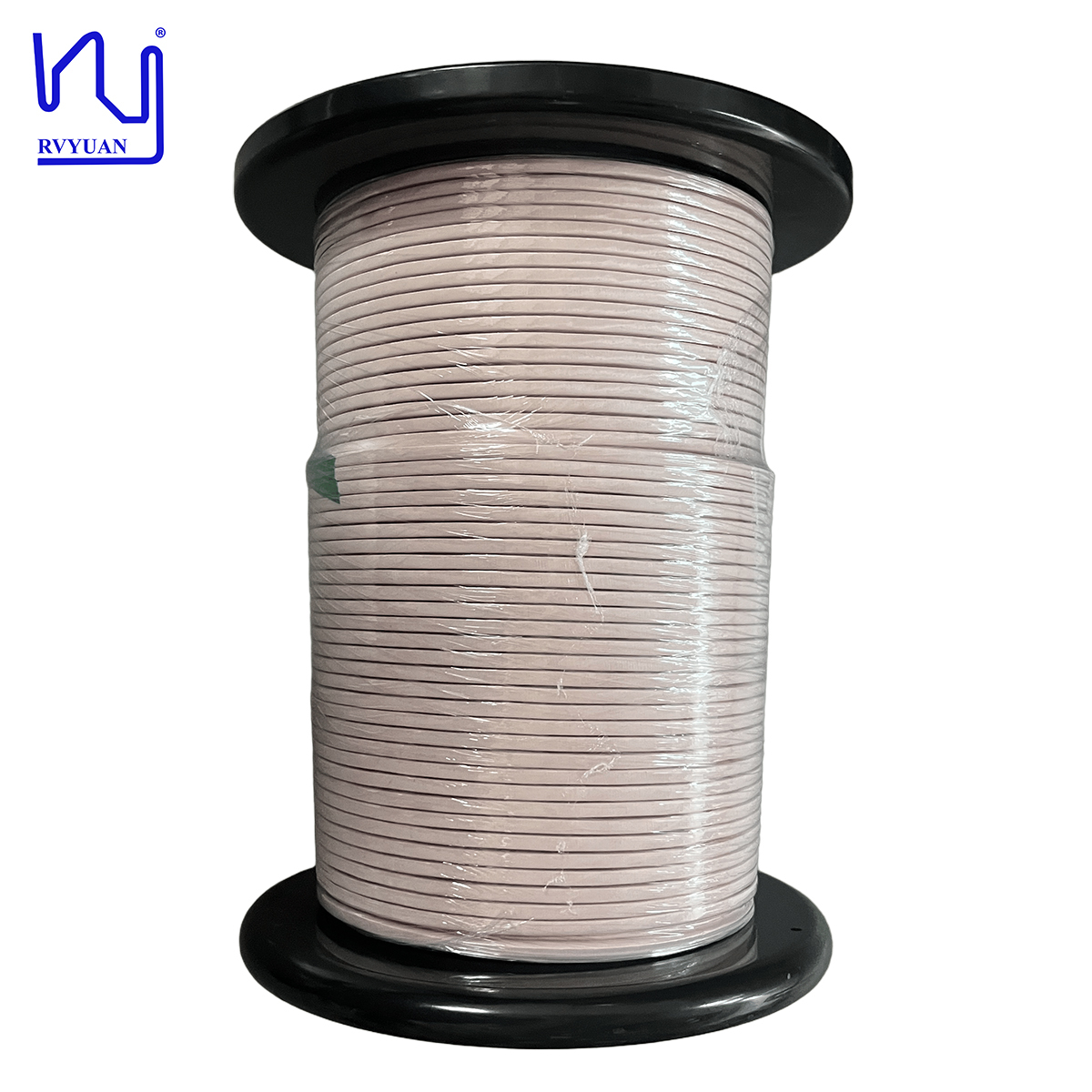

0.05mmx4875 Rectanglar copper Silk Covered Litz Wire For Transformer

Grundlegende Informationen

Herkunftsort:	China
Markenname:	RVYUAN
Zertifizierung:	ISO9001/ISO14001 /UL/SGS
Modellnummer:	USTC

Min Bestellmenge:	20kg
Preis:	Verhandelbar
Verpackung Informationen:	Spule mit Karton
Lieferzeit:	15 Werktage
Zahlungsbedingungen:	T/T/Paypal
Versorgungsmaterial-Fähigkeit:	Befriedigen Sie Ihre Nachfrage

Bestpreis Kontakt

Detailinformationen

Durchmesser:	0,05 mm	Temperatur:	155
Zertifizierung:	IEC/NEMA/JIS/RoHS/ISO	Leiter:	Kupfer
Stränge:	4875	Durchbruchspannung:	Mindestens 500
Bezugsmaterial:	Nylon	Schlüsselwort:	0,05 mm x 4875 rechteckiger, mit Seide überzogener Kupferlitzendraht für Transformatoren
Hervorheben:	rectangular copper litz wire , silk covered litz wire , transformer litz wire

Produkt-Beschreibung

0.05mm x 4875 Rectangular Copper Silk Covered Litz Wire For Transformer

Product Overview

This flat nylon serving litz wire is specifically designed for use in transformer windings. It is ideal for high-frequency transformers used in power electronics, such as those found in electric vehicle chargers, renewable energy systems, and switching power supplies. By reducing AC losses and enhancing thermal performance, this wire contributes to higher efficiency, reliability, and compactness in advanced transformer designs.

Technical Specifications

Type Conductor diameter*Strand number	2USTC-H 0.054875(4.54.4)
Single wire (strand) conductor diameter (mm)	0.050±0.003
Overall diameter (mm)	0.055-0.069
Thermal Class (°C)	180

Strands Construction

Strands number	First time	39
	Second time	39×5
	Third time	39×5×5
	Fourth time	39×5×5×5

Pitch Specifications

Pitch (mm)	First time	16±8
	Second time	25±10
	Third time	35±10
	Fourth time	65±10
Bunching direction	S/S/S/S

Insulation Layer

Material type	Nylon
Material specs (mm×mm or D)	/
Times of Wrapping	1
Overlap (%) or thickness (mm), mini	0.045
Wrapping direction	Z

Characteristics

Width (mm)	4.5±0.2
Thickness (mm)	4.4±0.2
Max resistance (Ω/Km at 20°C)	2.227
Breakdown voltage Mini (V)	500

All specifications are subject to standard manufacturing tolerances. Contact us for detailed technical data sheets and custom requirements.
