Enameled USTC Wire 0.055mmx126 Natural Silk Covered Silver plated copper litz wire

Grundlegende Informationen

Herkunftsort:	China
Markenname:	RVYUAN
Zertifizierung:	ISO9001/ISO14001 /UL/SGS
Modellnummer:	USTC

Min Bestellmenge:	20kg
Preis:	Verhandelbar
Verpackung Informationen:	Spule mit Karton
Lieferzeit:	15 Werktage
Zahlungsbedingungen:	T/T/Paypal
Versorgungsmaterial-Fähigkeit:	Befriedigen Sie Ihre Nachfrage

Bestpreis Kontakt

Detailinformationen

Durchmesser:	0.055mm	Temperatur:	155
Zertifizierung:	IEC/NEMA/JIS/RoHS/ISO	Leiter:	Kupfer
Stränge:	126	Durchbruchspannung:	Min.950
Bezugsmaterial:	Nylon	Schlüsselwort:	Emaillierter USTC-Draht, 0,055 mm x 126, mit Naturseide überzogen, versilberter Kupferlitzendraht
Hervorheben:	enameled USTC litz wire , silver plated copper litz wire , natural silk covered litz wire

Produkt-Beschreibung

Enameled USTC Wire 0.055mmx126 Natural Silk Covered Silver Plated Copper Litz Wire

This customized natural silk covered silver plated litz wire is engineered to meet the exacting demands of high-end audio applications. Its unique construction provides superior signal transmission, purity, and durability.

Product Features

Each silver plated copper wire features enamel insulation for complete electrical isolation between strands
Forces signal to flow through the entire conductor, minimizing eddy currents and phase distortion
Exceptional dielectric voltage resistance of at least 950 volts for safety and reliability
Ideal for high-voltage tube amplifier circuits and premium audio applications

Technical Specifications

Parameter	Specification
Conductor Diameter	0.0550±0.0030 mm (silver layer: 0.0002 mm)
Single Sides Insulated Layer Thickness	0.0050±0.0010 mm
Electrical Resistance of Single Wire	6.243~7.738 Ω/m
Breakdown Voltage	≥950 V
Twist Distance	P1=8±2 mm, P2=21±3 mm
Stranding Mode	18X7
Electrical Resistance	0.0505~0.0627 Ω/m
Thermal Class	F(155)
Soldering Time	2S/390±5℃
Twist Direction	Z
Faults/5m (Saline Pinhole)	0

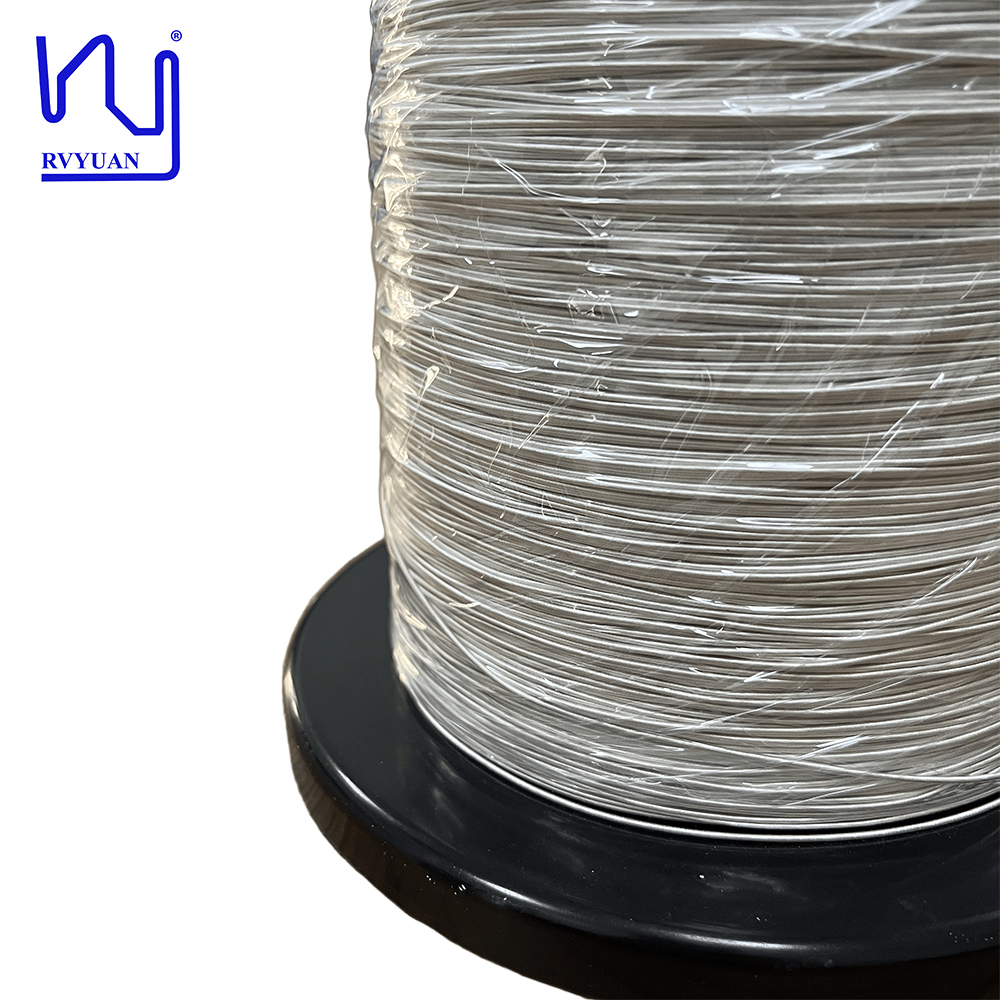

Product Image
