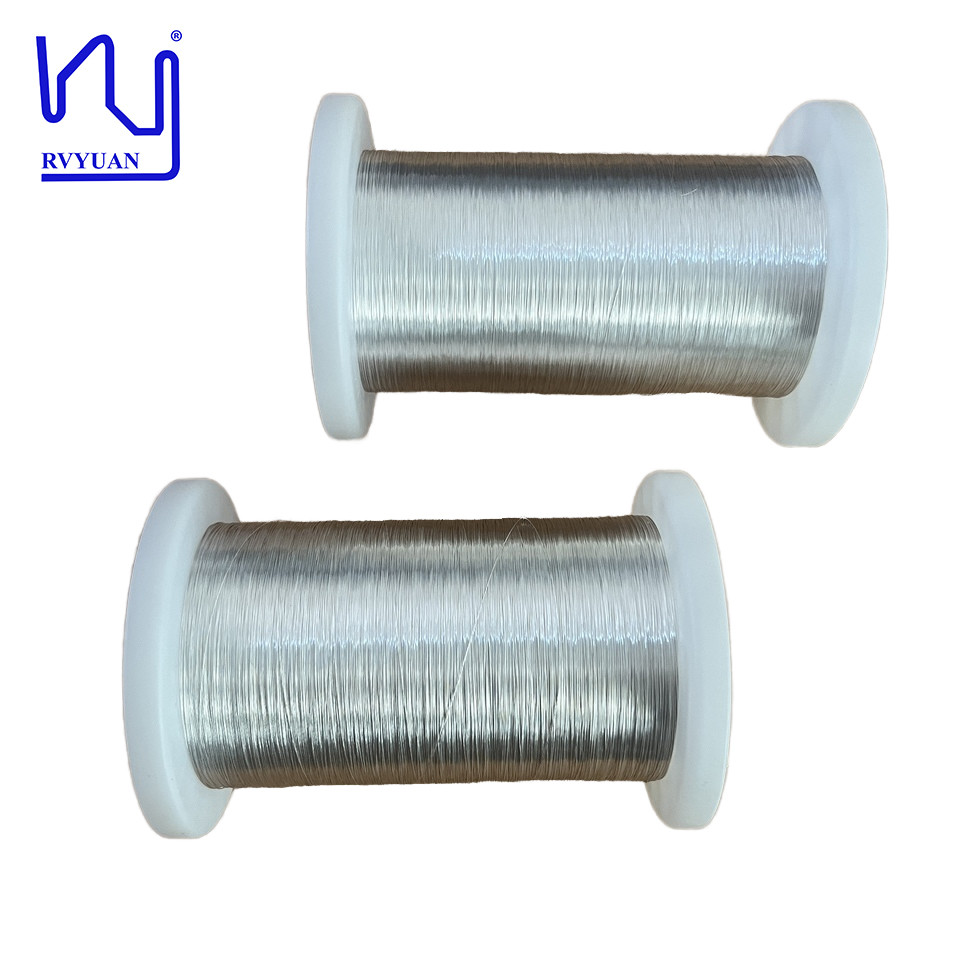

0.18mm 4N 99.99% OCC Enameled Soft Silver Wire For Audio

Grundlegende Informationen

Herkunftsort:	China
Markenname:	Ruiyuan
Zertifizierung:	UL/ISO9001/ISO14001/RoHS/Reach
Modellnummer:	4N oc reines Silberdraht

Min Bestellmenge:	2 kg
Preis:	negotiable
Verpackung Informationen:	Karton
Lieferzeit:	2 bis 15 Tage
Zahlungsbedingungen:	Verhandlung
Versorgungsmaterial-Fähigkeit:	10 t/Woche

Bestpreis Kontakt

Detailinformationen

Produktname:	2UEW-F 0,18mm Hochreine 4N OCC Emailliertes Silberdraht für Audio	Wärmebewertung:	155
Isolationsmaterial:	Emaille	Durchmesser:	0.18mm
Leitermaterial:	Silber	Schlüsselwort:	2UEW-F 0,18mm Hochreine 4N OCC Emailliertes Silberdraht für Audio
Hervorheben:	0.18mm OCC silver audio wire , 4N 99.99% enameled silver wire , soft silver wire for audio

Produkt-Beschreibung

0.18mm 4N 99.99% OCC Enameled Soft Silver Wire For Audio

Benefits of High-Purity Silver Wire in Audio Equipment

Excellent Conductivity: Silver has the best conductivity of all metals, superior to copper, enabling more efficient audio signal transmission with reduced signal loss.
Low Resistance: Minimizes energy loss during signal transmission, ensuring audio signal integrity and clarity.
Superior Frequency Response: Excels in high-frequency signal transmission, preserving audio details and dynamic range for richer sound quality.
Antioxidant Properties: Maintains excellent conductivity over time by resisting oxidation-related signal attenuation.
Sound Quality Characteristics: Provides brighter, clearer sound with enhanced high-frequency detail.
High-End Market Positioning: Represents both technical excellence and premium market positioning for audiophiles.

Standard Specifications for Monocrystalline Silver

Diameter (mm)	Tensile Strength (Mpa)	Elongation (%)	Conductivity (IACS%)	Purity (%)
Hard state	Soft state	Hard state	Soft state	Hard state	Soft state
3.0	≥320	≥180	≥0.5	≥25	≥104	≥105	≥99.995
2.05	≥330	≥200	≥0.5	≥20	≥103.5	≥104	≥99.995
1.29	≥350	≥200	≥0.5	≥20	≥103.5	≥104	≥99.995
0.102	≥360	≥200	≥0.5	≥20	≥103.5	≥104	≥99.995
