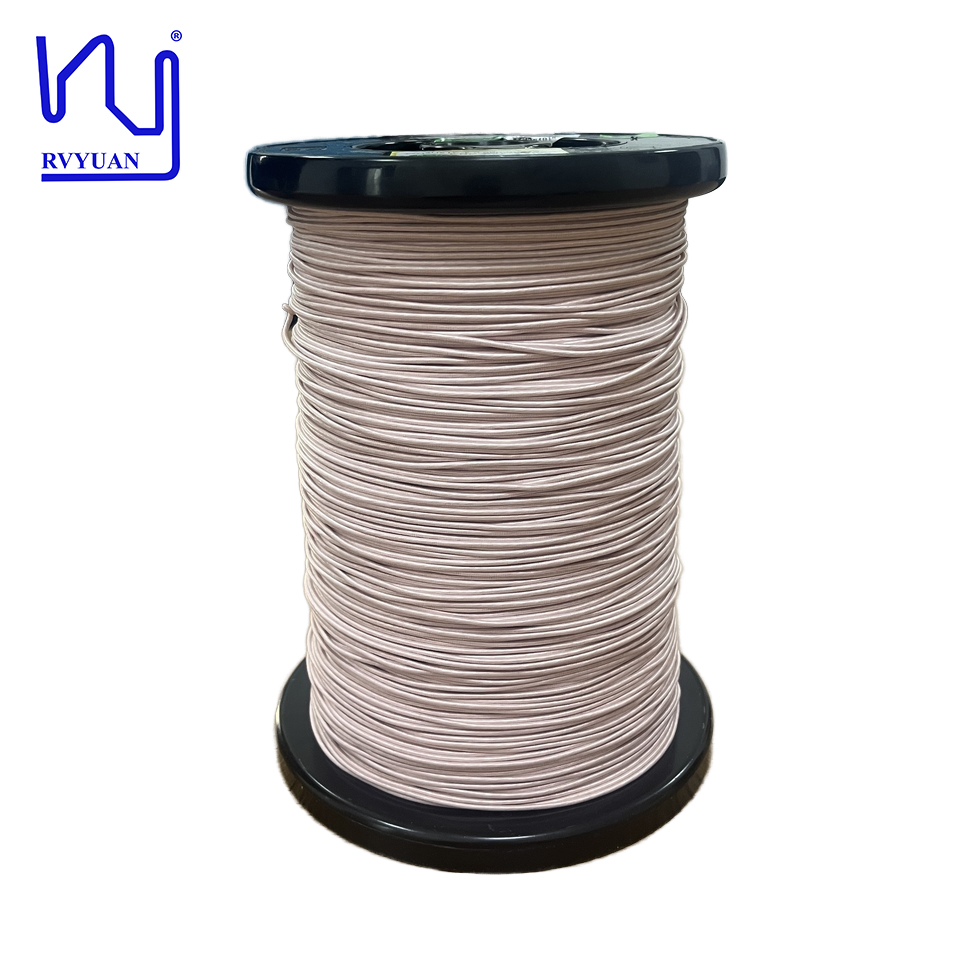

0.08x210 Litz Wire Multi-Strand Polyester Silk Covered Copper Wire

Grundlegende Informationen

Herkunftsort:	China
Markenname:	RVYUAN
Zertifizierung:	ISO9001/ISO14001 /UL/SGS
Modellnummer:	USTC

Min Bestellmenge:	10 kg
Preis:	negotiable
Verpackung Informationen:	Spule mit Karton
Lieferzeit:	2-15 Arbeitstage
Zahlungsbedingungen:	T/ t/ paypal
Versorgungsmaterial-Fähigkeit:	Befriedigen Sie Ihre Nachfrage

Bestpreis Kontakt

Detailinformationen

Durchmesser:	0,08 mm	Temperatur:	155
Zertifizierung:	IEC/NEMA/JIS/RoHS/ISO	Leiter:	Kupfer
Stränge:	210	Breakdown -Spannung:	Min.1100
Bezugsmaterial:	Nylon	Product name:	Customizable Litz Wire UEW 0.030-0.80mm Strands Twisted Enameled Copper Silk Cover0.08x210 Litz Wire Multi-Strand Polyester Silk Covered Copper Wire
Key word:	0.08x210 Litz Wire Multi-Strand Polyester Silk Covered Copper Wire
Hervorheben:	Litz wire multi-strand copper wire , Polyester silk covered Litz wire , 0.08x210 Litz wire with warranty

Produkt-Beschreibung

0.08x210 Litz Wire Multi-Strand Polyester Silk Covered Copper Wire

This silk covered Litz wire has a minimum order quantity of 10 kg and not only boasts superior performance but is also a reliable choice for manufacturers looking to optimize product efficiency and reliability. Whether in industrial applications or consumer electronics, silk-covered Litz wire is ideal for applications with extremely high electrical performance requirements.

Product Specifications

Item No.	Our diameter of single wire mm	Conductor diameter mm	Overall dimension mm	Resistance Ω /m	Breakdown voltage V	Pitch	No.Of strands
Tech requirement	0.087-0.103	0.08±0.003	Max.1.81	≤0.01780	≥1100	29±5	210
Sample 1	0.09-0.093	0.078-0.08	1.53-1.66	0.01635	3000	√	√
