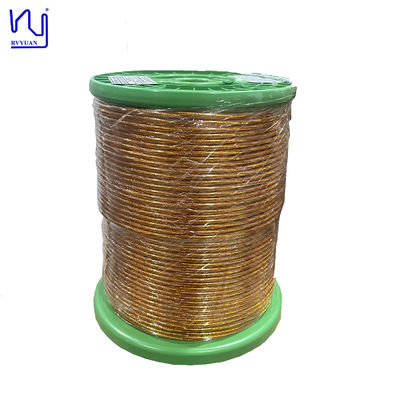

Taped Litz Wire 0.4mmx120 Round Type

Grundlegende Informationen

Herkunftsort:	China
Markenname:	Rvyuan
Zertifizierung:	IEC/NEMA/JIS/RoHS/ISO
Modellnummer:	aufgenommener Litzendraht

Min Bestellmenge:	20 kg
Preis:	negotiable
Verpackung Informationen:	Spule mit Karton
Lieferzeit:	2-15 Arbeitstage
Zahlungsbedingungen:	Verhandlung
Versorgungsmaterial-Fähigkeit:	Befriedigen Sie Ihre Nachfrage

Bestpreis Kontakt

Detailinformationen

Name:	Polyesterimid-bandisolierter Litzendraht 0,4 mm x 120 Kupfer-Litzendraht für Transformator	Zertifizierung:	ISO9001/ISO14001/UL/SGS
Durchmesser:	0,4 mm	Leiter:	Kupfer
Isolierung:	PU-Film	Nenntemperatur:	180
Schlüsselwort:	Polyesterimid-bandisolierter Litzendraht 0,4 mm x 120 Kupfer-Litzendraht für Transformator	Anzahl der Stränge:	120
Hervorheben:	0.4mm taped Litz wire , round type Litz wire , 120 strand copper Litz wire

Produkt-Beschreibung

Taped Litz Wire 0.4mmx120 Round Type

Taped litz wire offers several advantages, particularly in applications involving high-frequency signals and electromagnetic fields.

Reduced Skin Effect: Minimizes skin effect, improving efficiency at high frequencies.
Lower Proximity Effect: Ensures more uniform current distribution across the wire.
Improved Flexibility: Easier to handle and install in tight spaces or complex assemblies.
Enhanced Thermal Performance: Operates at higher temperatures without degrading performance.
Reduced Electromagnetic Interference (EMI): Suitable for sensitive electronic applications.
Better High-Frequency Performance: Ideal for RF transmission, transformers, and inductors.
Durability and Protection: Tape provides mechanical protection against wear and tear.
Customizability: Available in various configurations to meet specific requirements.

Outgoing Test Specifications

Item	Standard	Test Result
Outer conductor diameter (mm)	0.068-0.081	0.068-0.071
Conductor diameter (mm)	0.06±0.003	0.056-0.060
Overall diameter (mm)	Max.1.86	1.68-1.82
Pitch (mm)	29±5	17
Max resistance (Ω/m at 20℃)	Max. 0.01809	0.01573
Breakdown voltage Mini (V)	6000	13700
NO. Of strands	385	77x5
Tape overlap %	Min.50	53

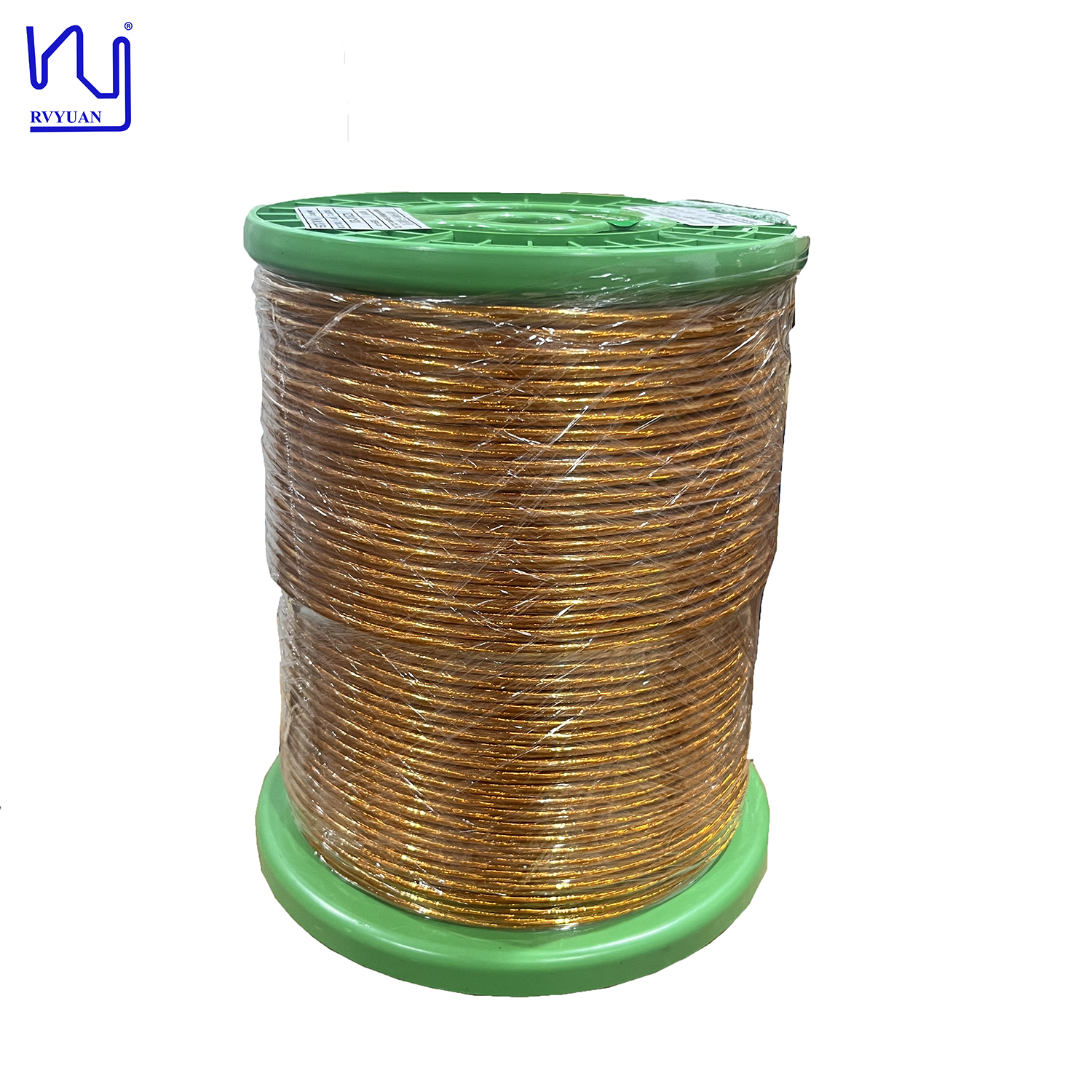

Product Images
