Name: Custom PEEK wire2.0mm 3mm 4mm 5mm Enameled Rectangular Copper Wire For Automotive
Brand: Tianjin Ruiyuan Electric Material Co,.Ltd
SKU: SPÄHEN
Price: 24.06 USD
Availability: InStock

Detailinformationen

Typ des Kontaktors:	solide	Material:	Kupfer
Form:	Rechteckig	Breite:	2,0 mm
Typ:	Isoliert	Zertifikate:	Einheitliche Sicherheitsnormen2008
Produktname:	Kundenspezifischer PEEK-Draht 2,0 mm 3 mm 4 mm 5 mm emaillierter rechteckiger Kupferdraht für die Au	Dicke:	1,4 mm
Hervorheben:	custom PEEK enameled rectangular copper wire , 2.0mm rectangular copper wire for automotive , 5mm enameled copper wire with warranty

Produkt-Beschreibung

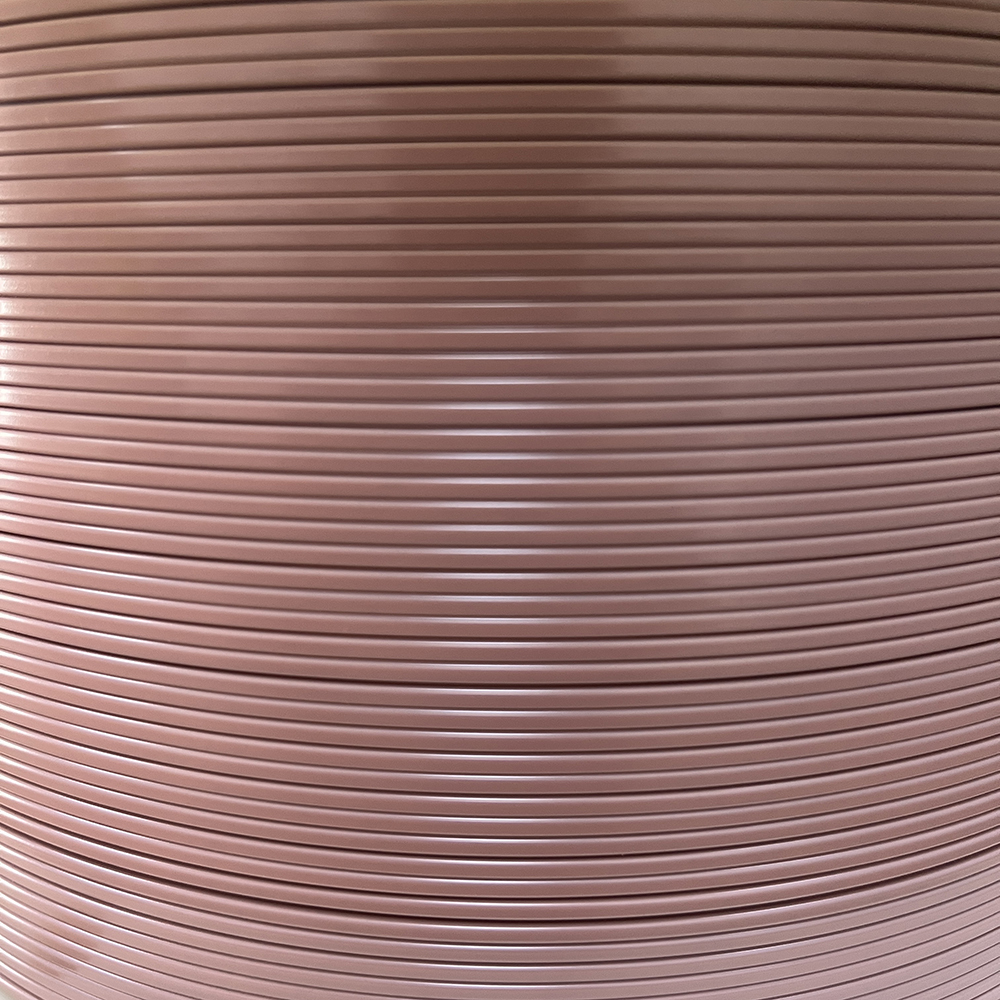

Custom PEEK Wire 2.0mm 3mm 4mm 5mm Enameled Rectangular Copper Wire For Automotive

Custom PEEK wire 2.0mm 3mm 4mm 5mm Enameled Rectangular Copper Wire For Automotive

Applications

Medical Industry: PEEK's excellent biocompatibility and antimicrobial properties make it suitable for components of medical devices, including implants and surgical instruments.
Industrial Equipment: In the chemical industry, PEEK wire is used for fluid transportation and protective housings in harsh environments because it is resistant to acids and alkalis.
Renewable Energy: PEEK filament is also used in fuel cells and battery separators to improve performance and safety.

Specifications

Ref. No.	Item	Specification	Measurement data (W607010 2A250904)	Measurement data (W607010 2B250904)	Measure equipment
1	Copper width	1.980-2.020mm	2.004	2.005	Mircometer
2	Copper thickness	1.380-1.420mm	1.400	1.399	Mircometer
3	Overall width	2.300-2.360 mm	2.324	2.321	Mircometer
4	Overall thickness	1.700-1.760 mm	1.732	1.731	Mircometer
5	Copper radius	0.350-0.450mm	0.375	0.408	Microscope
6	Copper radius		0.385	0.412	Microscope
7	Copper radius		0.399	0.411	Microscope
8	Copper radius		0.404	0.407	Microscope
9	Insulation layer thickness	0.145-0.185mm	0.170	0.159	Microscope
10	Insulation layer thickness		0.162	0.155	Microscope
11	Insulation layer thickness		0.155	0.161	Microscope
12	Insulation layer thickness		0.167	0.165	Microscope
13	Insulation layer thickness		0.152	0.155	Microscope
14	Insulation layer thickness		0.161	0.159	Microscope
15	Insulation layer thickness of radius	0.145-0.185mm	0.156	0.158	Microscope
16	Insulation layer thickness of radius		0.159	0.155	Microscope
17	Insulation layer thickness of radius		0.154	0.159	Microscope
18	Insulation layer thickness of radius		0.160	0.165	Microscope
19	Copper	T1	OK		Material certificate
20	Coating/Temperature grade	240℃	OK		Material certificate
21	Elongation	≥40%	46	48	Tensile tester
22	Spring back angle	/	5.186	5.098	Auto spring back test
23	Flexibility	After winding with Ø 2.0mm and Ø3.0mm diameter round rods, there should be no cracking in the insulation layer.	OK	OK	Visual
24	Adhesion	≤3.00mm	0.394	0.671	Tensile tester&Microscope
25	20℃ Conductor resistance	≤6.673 Ω/km	6.350	6.360	Conductor resistance tester
26	BDV	≥12000 V	22010	21170	Auto voltage tester
27	PDIV	≥1300 RMS (25℃,50V/S,50Hz,100Pc)	1425	1429	PDIV tester
28	Heat shock	After baking at 240℃ for 30 minutes, the insulation layer should have no cracks.	OK		Oven
29	Defect inspection	High voltage Pinhole: DC 3000V, 16uA Parricle: Height＞0.100mm need to be marked Impurity:Length or width ≥ 0.4mm or area ≥0.16mm² need to be marked	0 0 0	0 0 2	On-line inspection system
30	Spool&Weight	Sample phase:P-30,25±15kg Mass productin:PC-630B,160± 60kg	P-30	P-30	Visual

Größe und Tag:

Herkunftsort:	CHINA
Markenname:	Ruiyuan
Zertifizierung:	UL/ISO9001/ISO14001/RoHS/Reach
Modellnummer:	SPÄHEN

Min Bestellmenge:	50 kg
Preis:	negotiable
Verpackung Informationen:	KARTON
Lieferzeit:	7 Tage
Zahlungsbedingungen:	T/t
Versorgungsmaterial-Fähigkeit:	100kg/Woche
