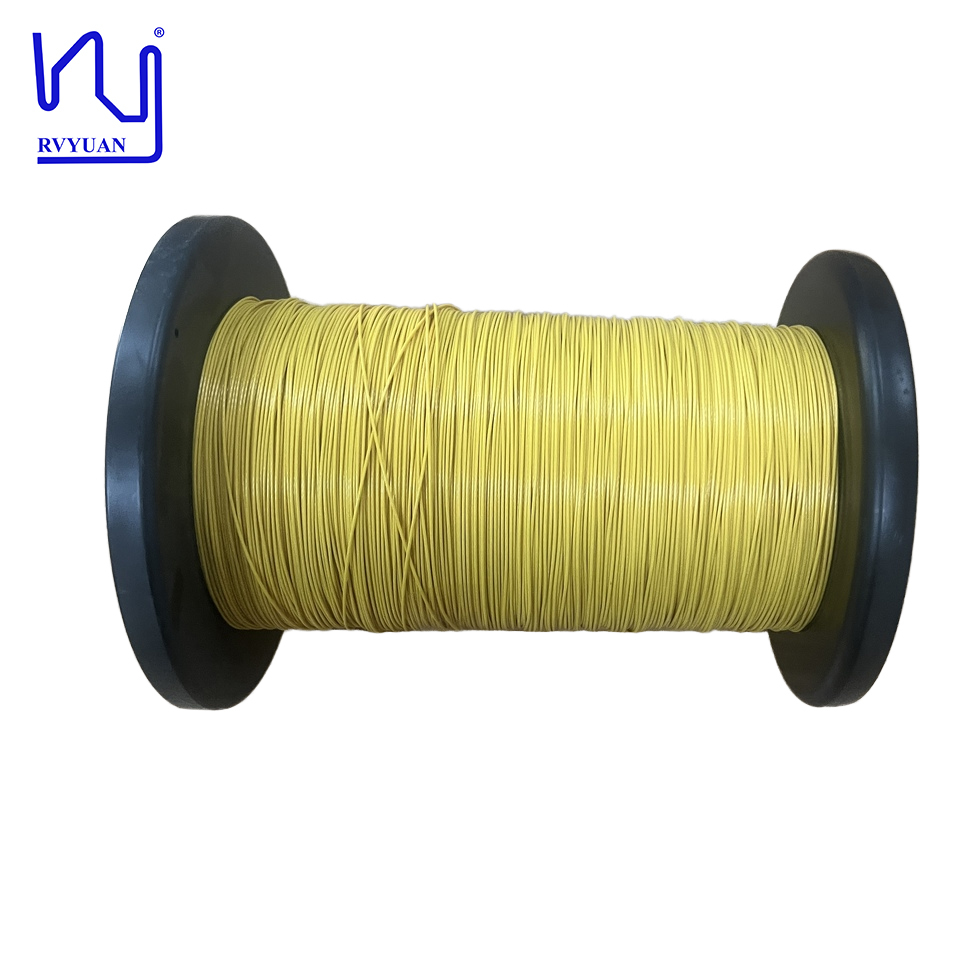

ETFE Insulation 0.21mm 0.24mm 0.27mm TIW Insulated Copper Litz Wire

Grundlegende Informationen

Herkunftsort:	CHINA
Markenname:	RVYUAN
Zertifizierung:	UL/ISO9001/ISO14001/RoHS/Reach
Modellnummer:	0.27mm

Min Bestellmenge:	1000 Meter
Preis:	negotiable
Verpackung Informationen:	Karton
Lieferzeit:	7 Tage
Zahlungsbedingungen:	T/t/paypal
Versorgungsmaterial-Fähigkeit:	1ton/month

Bestpreis Kontakt

Detailinformationen

Produktname:	ETFE -Isolierung 0,21 mm 0,24 mm 0,27 mm TIW isoliertes Kupfer -Litz -Draht	Wärmebewertung:	155
Einzeldrahtdurchmesser:	0.27mm	Leitermaterial:	Kupfer
Anzahl der Stränge:	7	Insualität:	ETFE
Hervorheben:	ETFE insulated copper litz wire , TIW insulated litz wire , 0.27mm copper litz wire

Produkt-Beschreibung

ETFE Insulation 0.21mm 0.24mm 0.27mm TIW Insulated Copper Litz Wire

Construction

Individual copper strands are insulated, often with a lacquer coating.
These strands are then twisted or bundled together to form the Litz structure.
An extruded, continuous layer of ETFE is applied to the outside of the twisted bundle for protection and enhanced insulation.

Specifications

Characteristics	Test Standard	Test result
Outer diameter of single wire	0.295mm	0.288 \| 0.287 \| 0.287
Min. insulation thickness	/Mm(min)	0.019 \| 0.018 \| 0.019
Pitch	S12±2	ok \| ok \| ok
Single wire Diameter	0.27±0.004MM	0.269 \| 0.269 \| 0.268
Overall dimension	1.06-1.2mm(Max)	1.078 \| 1.088 \| 1.085
Conductor Resistance	Max. 45.23Ω/KM(max)	44.82 \| 44.73 \| 44.81
Breakdown voltage	Min. 6KV(min)	15 \| 14.5 \| 14.9
Solder ability	450℃ 3Secs	OK \| OK \| OK
Conclusion	Qualified

We have a professional team to provide technical support. Custom specifications available upon request.
