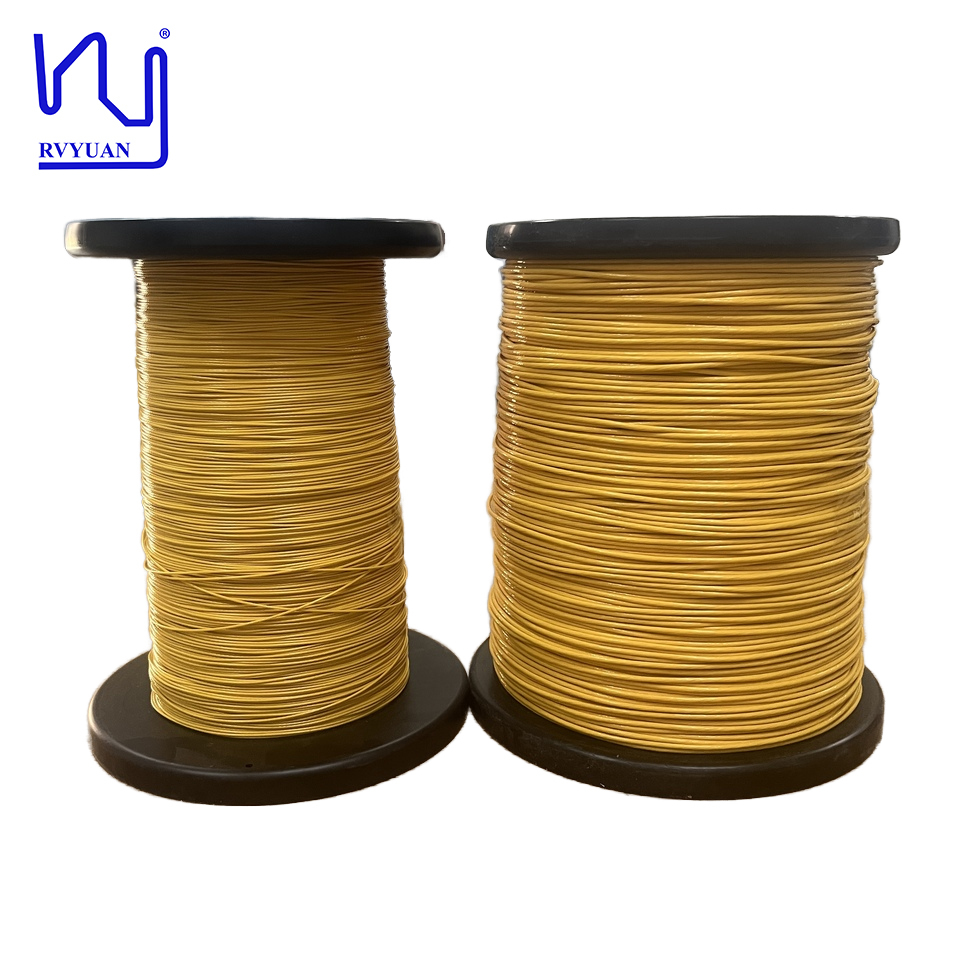

Custom Class 155 7 Strands Extruded ETFE Insulation Copper Litz Wire

Grundlegende Informationen

Herkunftsort:	CHINA
Markenname:	RVYUAN
Zertifizierung:	UL/ISO9001/ISO14001/RoHS/Reach
Modellnummer:	0.27mm

Min Bestellmenge:	1000 Meter
Preis:	negotiable
Verpackung Informationen:	Karton
Lieferzeit:	7 Tage
Zahlungsbedingungen:	T/t/paypal
Versorgungsmaterial-Fähigkeit:	1ton/month

Bestpreis Kontakt

Detailinformationen

Produktname:	Benutzerdefinierte Klasse 155 7 Stränge extrudierte ETFE -Isolierung Kupfer Litz Draht	Wärmebewertung:	155
Einzeldrahtdurchmesser:	0.27mm	Leitermaterial:	Kupfer
Anzahl der Stränge:	7	Insualität:	ETFE
Hervorheben:	Custom Class 155 Litz Wire , 7 Strands ETFE Insulation Wire , Extruded Copper Litz Wire

Produkt-Beschreibung

Custom Class 155 7 Strands Extruded ETFE Insulation Copper Litz Wire

Litz Wire:

A cable composed of multiple strands of insulated wire, twisted or braided together in a specific configuration to reduce AC resistance, particularly at high frequencies.

ETFE Insulation:

Ethylene Tetrafluoroethylene, a fluoropolymer known for its high dielectric strength, excellent thermal stability, resistance to chemicals and UV radiation, and low friction properties.

Characteristics	Test Standard	Test result
Outer diameter of single wire	0.295mm	0.288 \| 0.287 \| 0.287
Min. insulation thickness	/Mm(min)	0.019 \| 0.018 \| 0.019
Pitch	S12±2	ok \| ok \| ok
Single wire Diameter	0.27±0.004MM	0.269 \| 0.269 \| 0.268
Overall dimension	1.06-1.2mm(Max)	1.078 \| 1.088 \| 1.085
Conductor Resistance	Max. 45.23Ω/KM(max)	44.82 \| 44.73 \| 44.81
Breakdown voltage	Min. 6KV(min)	15 \| 14.5 \| 14.9
Solder ability	450℃ 3Secs	OK \| OK \| OK
Conclusion	Qualified

We have a professional team to provide technical support. Custom specifications available upon request.
