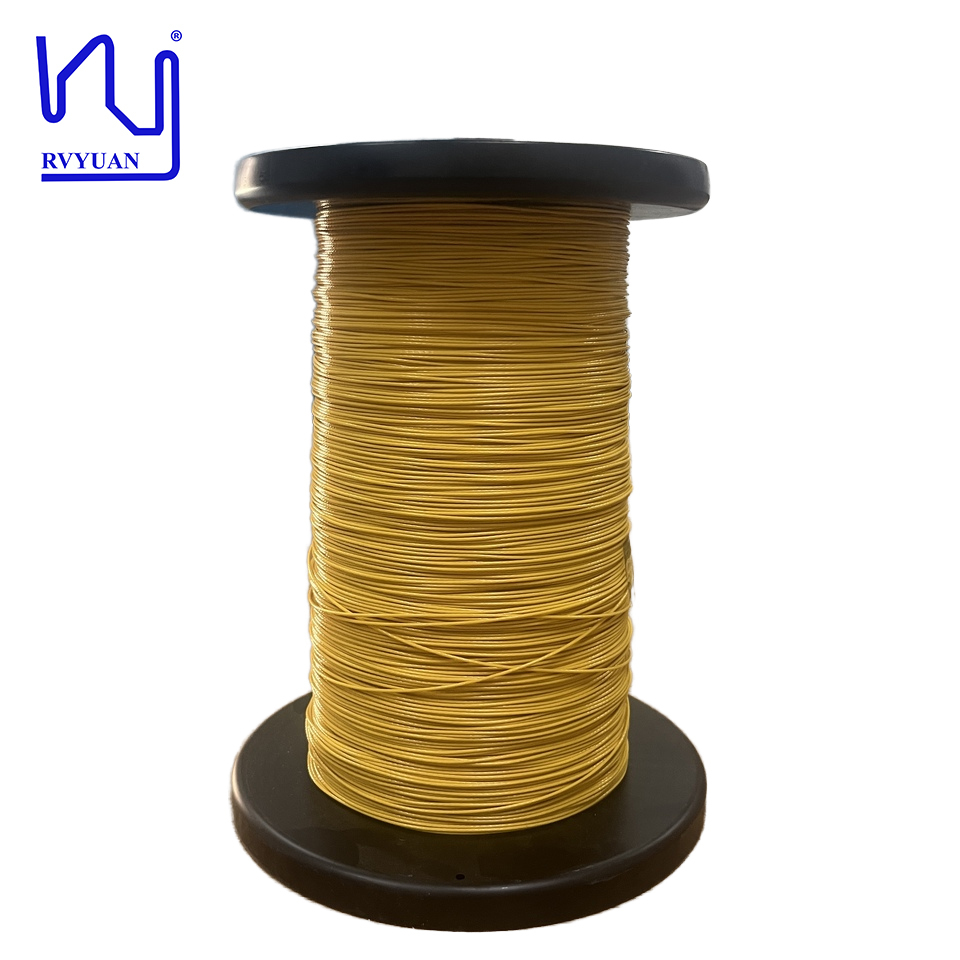

FTIW-F Class 155 0.27mmx7 Extruded ETFE Insulation Litz Wire For High Frequency Transformer

Grundlegende Informationen

Herkunftsort:	CHINA
Markenname:	RVYUAN
Zertifizierung:	UL/ISO9001/ISO14001/RoHS/Reach
Modellnummer:	0.27mm

Min Bestellmenge:	1000 Meter
Preis:	negotiable
Verpackung Informationen:	Karton
Lieferzeit:	7 Tage
Zahlungsbedingungen:	T/t/paypal
Versorgungsmaterial-Fähigkeit:	1ton/month

Bestpreis Kontakt

Detailinformationen

Produktname:	FTIW-F Klasse 155 0,27 mmx7 extrudierte ETFE-Isolierung Litz-Draht für Hochfrequenztransformator	Wärmebewertung:	155
Einzeldrahtdurchmesser:	0.27mm	Leitermaterial:	Kupfer
Anzahl der Stränge:	7	Insualität:	ETFE
Hervorheben:	ETFE insulated Litz wire , high frequency transformer wire , 0.27mmx7 extruded Litz wire

Produkt-Beschreibung

FTIW-F Class 155 0.27mmx7 Extruded ETFE Insulation Litz Wire For High Frequency Transformer

ETFE insulation Litz wire is a high-performance cable featuring a bundle of individually insulated strands twisted together and coated with an extruded layer of Ethylene Tetrafluoroethylene (ETFE) insulation. This combination offers superior performance in demanding applications by minimizing skin-effect losses in high-frequency environments, enhanced electrical properties for high-voltage use, and excellent thermal, mechanical, and chemical resistance due to the strong ETFE fluoropolymer.

Technical Specifications

Characteristics	Test Standard	Test result
Outer diameter of single wire	0.295mm	0.288	0.287	0.287
Min. insulation thickness	/Mm(min)	0.019	0.018	0.019
Pitch	S12±2	ok	ok	ok
Single wire Diameter	0.27±0.004MM	0.269	0.269	0.268
Overall dimension	1.06-1.2mm(Max)	1.078	1.088	1.085
Conductor Resistance	Max. 45.23Ω/KM(max)	44.82	44.73	44.81
Breakdown voltage	Min. 6KV(min)	15	14.5	14.9
Solder ability	450℃ 3Secs	OK	OK	OK
Conclusion	Qualified

We have a professional team to provide technical support. Custom specifications available upon request.
