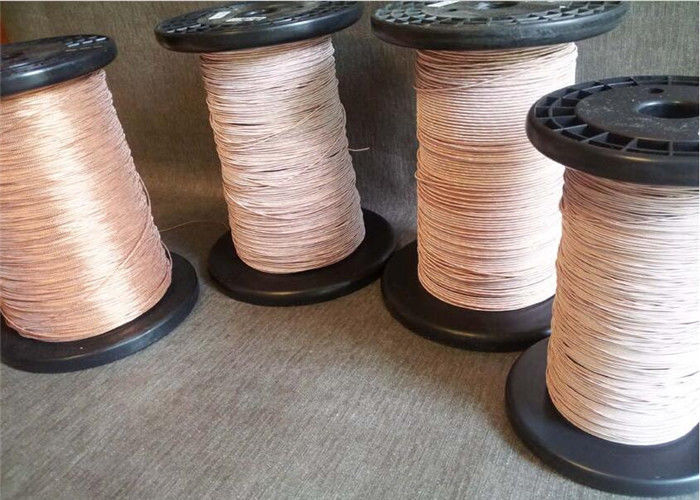

Customized silk covered litz wire 0.025mm-0.5mm Stranded Copper Litz Wire for Transformer

Grundlegende Informationen
Herkunftsort: CHINA
Markenname: RVYUAN
Zertifizierung: ISO9001/ISO14001 /UL/SGS
Modellnummer: USTC
Min Bestellmenge: 10 kg
Preis: negotiable
Verpackung Informationen: Spule mit Karton
Lieferzeit: 2-15 Arbeitstage
Zahlungsbedingungen: T/ t/ paypal
Versorgungsmaterial-Fähigkeit: Befriedigen Sie Ihre Nachfrage
Detailinformationen
Durchmesser: 0,071 mm Temperatur: 155
Zertifizierung: IEC/NEMA/JIS/RoHS/ISO Leiter: Kupfer
Stränge: 250 Breakdown -Spannung: 1300
Isolierung: Uew Produktname: Customized Seidenbedeckte Litz-Draht 0,025 mm-0,5 mm gestrandet Kupfer Litzdraht für Transformator
Schlüsselwort: Customized Seidenbedeckte Litz-Draht 0,025 mm-0,5 mm gestrandet Kupfer Litzdraht für Transformator
Hervorheben:

custom silk litz wire

,

stranded copper litz wire

,

transformer litz wire


Produkt-Beschreibung

Customized Silk Covered Litz Wire 0.025mm-0.5mm Stranded Copper Litz Wire for Transformer
Our company specializes in providing custom silk covered litz wire, with single wire sizes ranging from 0.025mm to 0.5mm. We offer a wide range of strand counts, from single-strand to 13,000 strands, ensuring that we can meet your specific needs. In addition to silk-covered litz wire, we also supply taped litz wire and flat taped litz wire. Our products are meticulously crafted to meet your system requirements, ensuring optimal performance and reliability. With a commitment to quality and customization, we work closely with our clients to deliver litz wire solutions that perfectly align with their applications. Trust us to provide the ideal litz wire tailored to your specifications.
Product Specifications
Attribute Value
Diameter 0.071mm
Temperature 155
Certification IEC/NEMA/JIS/RoHS/ISO
Conductor Copper
Strands 250
Breakdown voltage 1300
Insulation UEW
Technical Specifications
Item Technical requests Test value 1 Test value 2
Conductor Diameter (mm) 0.076-0.084 0.079 0.080
Single wire diameter (mm) 0.071±0.003 0.068 0.070
O.D. (mm) Max. 1.85 1.57 1.68
Resistance Ω/m (20℃) Max. 0.01196 0.01815 0.01812
Breakdown Voltage V 950 3100 3000
Pitch mm 29± 5
No. of strands 250
Explore the endless possibilities of our natural silk-covered litz wire and experience the extraordinary experience of working with a trusted industry leader. Contact us today to discuss your needs and let us create the perfect wire solution for your next project.
Customized silk covered litz wire 0.025mm-0.5mm Stranded Copper Litz Wire for Transformer 0
