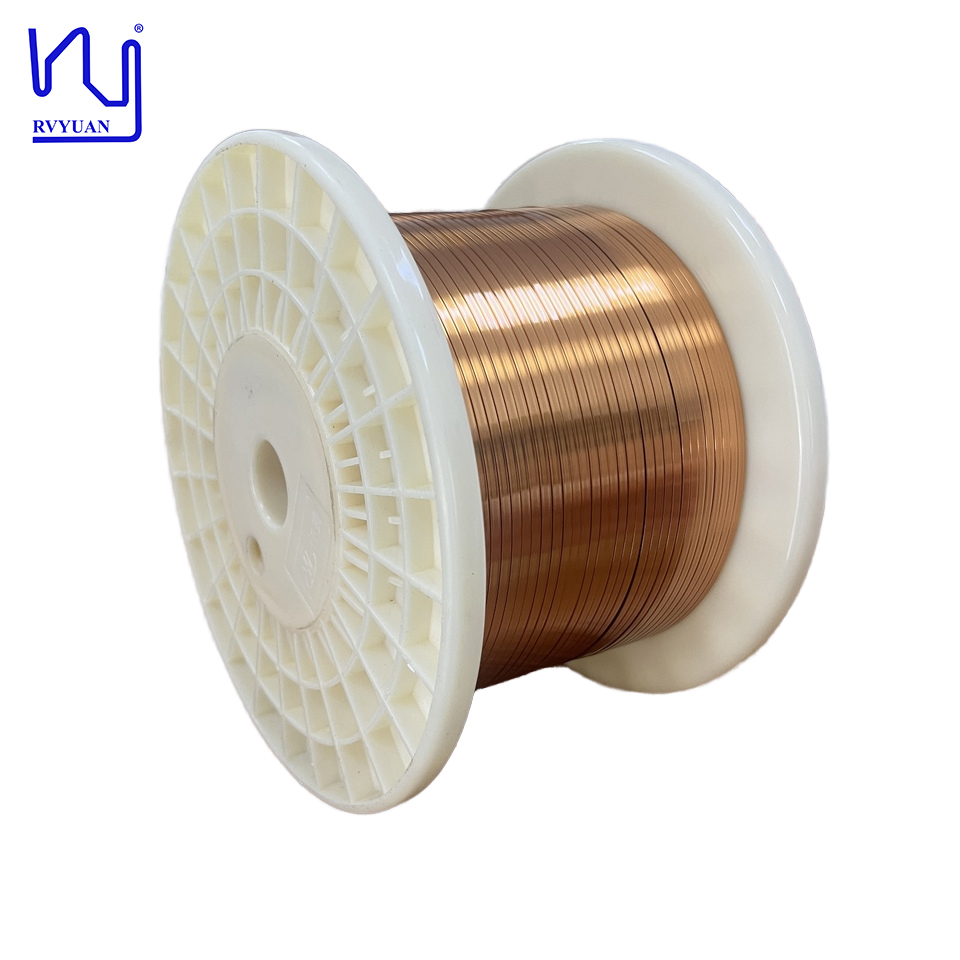

Custom Flat/Rectangular 3mm Enameled Insulated Copper Winding Wire for Inductor

Grundlegende Informationen

Place of Origin:	China
Markenname:	RVYUAN
Zertifizierung:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	Class 220

Minimum Order Quantity:	10KG
Preis:	negotiable
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	T/T/Paypal
Supply Ability:	Satisfy your demand

Bestpreis Kontakt

Detailinformationen

Shape:	Rectangular	Width:	3.0mm
Thickness:	0.2mm	Applications:	Motor, transformer
Thermal Grade:	180	Key word:	Custom Flat/Rectangular 3mm Enameled Insulated Copper Winding Wire for Inductor
Enamel coating:	UEW
Hervorheben:	3mm enameled insulated copper wire , rectangular copper winding wire , custom inductor enameled copper wire

Produkt-Beschreibung

Custom Flat/Rectangular 3mm Enameled Insulated Copper Winding Wire for Inductor

Product Description

Custom Flat/Rectangular 3mm Enameled Insulated Copper Winding Wire for Inductor

Key Features

High conductivity pure copper material
Excellent shock resistance
Superior durability and strength
Rust resistant with low maintenance
Cost-effective solution
220℃ thermal class rating
AIW enamel coating for optimal insulation

This enameled flat copper wire can be soldered directly without stripping the enameled coating. This convenience significantly reduces assembly time and labor costs, making it an ideal choice for manufacturers. The ability to solder directly to the wire ensures a secure and reliable connection, crucial in applications where electrical integrity is paramount.

Technical Specifications

Item	Conductor dimension		Unilateral insulation layer thickness		Overall dimension		Breakdown voltage
Item	Thickness	Width	Thickness	Width	Thickness	Width	Breakdown voltage
Unit	mm	mm	mm	mm	mm	mm	kv
SPEC	AVE 0.300	3.000	0.025	0.025	/	/
	Max 0.309	3.060	0.040	0.040	0.35	3.1
	Min 0.191	2.940	0.010	0.010	/	/	0.700
No. 1	0.301	2.998	0.020	0.029	3.341	3.045	1.320
No. 2							1.085
No. 3							1.030
No. 4							0.960
No. 5							1.152
No. 6							/
No. 7							/
No. 8							/
No. 9
No. 10							/
Avg	0.301	2.998	0.020	0.029	0.341	3.045	1.109
Number of reading	1	1	1	1	1	1	5
Min. reading	0.301	2.988	0.020	0.029	0.341	3.045	0.960
Max. reading	0.031	2.988	0.020	0.029	0.341	3.045	1.320
Range	0.000	0.000	0.000	0.000	0.000	0.000	1.320
Result	OK	OK	OK	OK	OK	OK	OK
