Name: UEWH-180 0.50mm 0.06mm Rectangular Wire Enameled Flat Copper Wire
Brand: Tianjin Ruiyuan Electric Material Co,.Ltd
SKU: UEWH
Price: 24.06 USD
Availability: InStock

UEWH-180 0.50mm 0.06mm Rectangular Wire Enameled Flat Copper Wire

Grundlegende Informationen

Herkunftsort:	China
Markenname:	RVYUAN
Zertifizierung:	IEC/NEMA/JIS/RoHS/ISO
Modellnummer:	UEWH

Min Bestellmenge:	10kg
Preis:	negotiable
Verpackung Informationen:	Spulen mit Karton
Lieferzeit:	7 Tage
Zahlungsbedingungen:	T/T, PayPal
Versorgungsmaterial-Fähigkeit:	Befriedigen Sie Ihre Nachfrage

Bestpreis Kontakt

Detailinformationen

Shape:	Rectangular	Width of conductor:	2.4mm
Unilateral Insulation Layer Thickness (Width):	0.025mm	Thickness of conductor:	0.5mm
Applications:	UEWH-180 0.50mm 0.06mm Rectangular Wire Enameled Flat Copper Wire	Thermal Grade:	220
Key word:	UEWH-180 0.50mm 0.06mm Rectangular Wire Enameled Flat Copper Wire
Hervorheben:	0.06mm Rectangular Wire , UEWH-180 Rectangular Wire , 0.50mm Enameled Rectangular Wire

Produkt-Beschreibung

UEWH-180 0.50mm 0.06mm Rectangular Wire Enameled Flat Copper Wire

We understand that every project has unique requirements, so we offer small custom options. For finer wire gauges, our minimum order quantity is just 10 kg. We can offer a wide range of sizes, with thicknesses ranging from 0.03 mm to 3 mm, and widths up to 15 mm. This flexibility allows you to tailor your wire to your specific needs, ensuring you get the perfect product for your application.

Item		Conductor dimension		Unilateral insulation thickness		Overall dimension		Dielectric breakdown voltage	Conductor resistance
		T	W	T	W	T	W	Dielectric breakdown voltage	Conductor resistance
Unit		mm	mm	mm	mm	mm	mm	kv	Ω/km 20℃
SPEC	AVE	0.500	2.400	0.025	/	/	/
	Max	0.509	2.460	0.040	0.550	0.0550	2.500		16.090
	Min	0.491	2.340	0.010				0.700
No. 1		0.501	2.405	0.039	0.544	0.544	2.483	4.880	14.437
No. 2		0.500	2.406	0.039	0.545	0.545	2.485	4.331
No. 3		0.502	2.407	0.039	0.543	0.543	2.484	3.660
No. 4								4.515
No. 5								4.600
No. 6								4.770
No. 7								4.440
No. 8								4.250
No. 9								3.990
No. 10								3.750
Avg		0.501	2.406	0.022	0.039	0.544	2.484	4.319
No.of reading		3	3	3	3	3	3	10
Min. reading		0.500	2.405	0.021	0.022	0.543	2.483	3.660
Max. reading		0.502	2.407	0.023	0.039	0.545	2.485	4.880
Range		0.002	0.002	0.002	0.001	0.002	0.002	1.220
Result		OK	OK	OK	OK	OK	OK	OK	OK

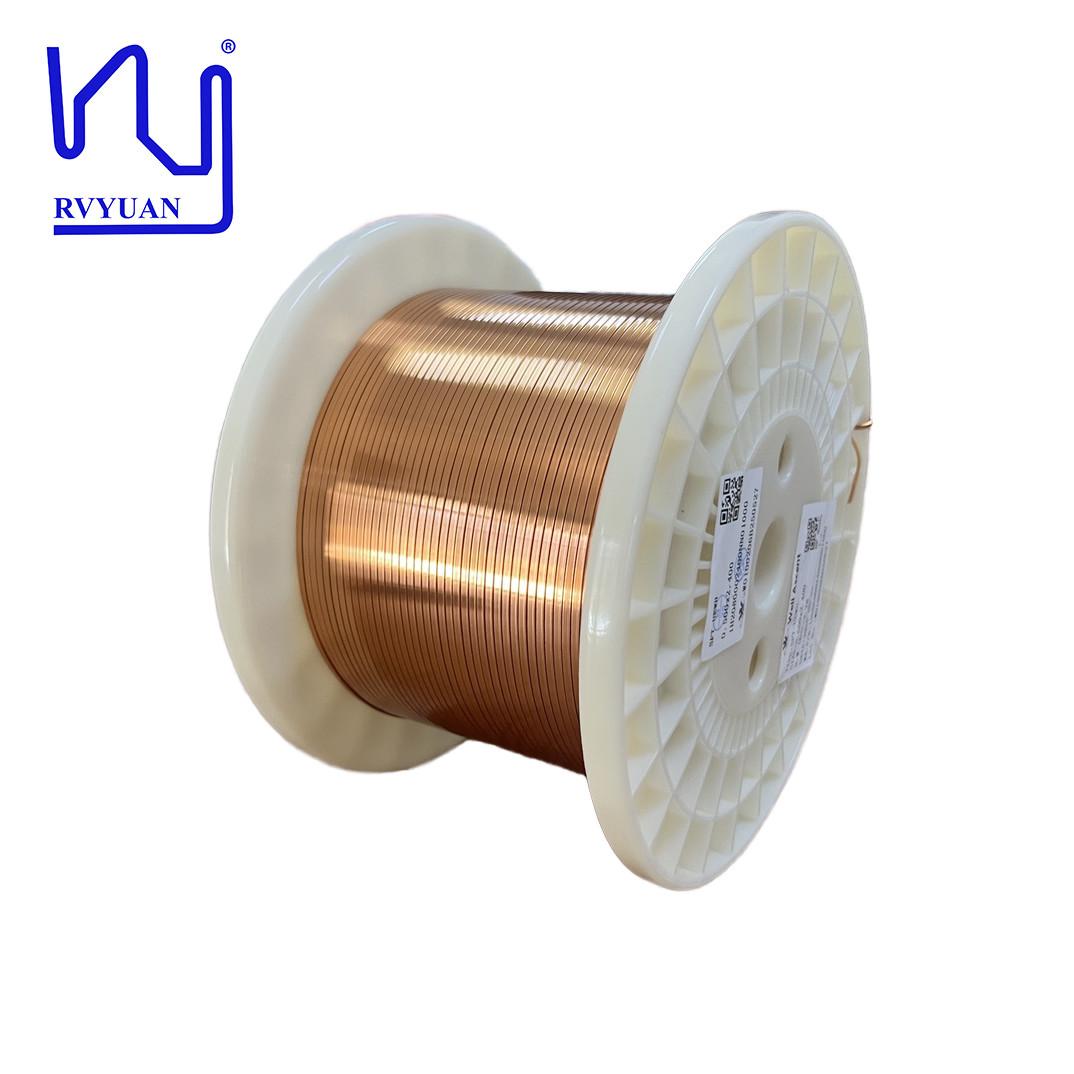

UEWH-180 0.50mm 0.06mm Rectangular Wire Enameled Flat Copper Wire 0
